SGV Series High Pressure Pumps

☆Features & Benefits

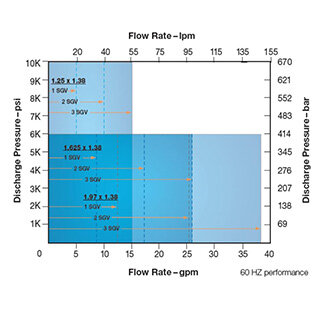

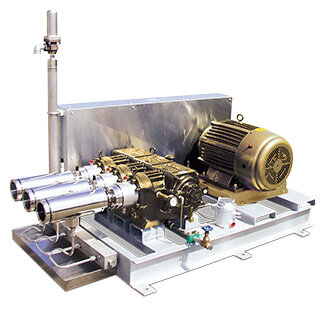

ACD's SGV reciprocating pump has become the industry’s leader for LNG high pressure and high flow applications. With its new large 50mm bore (1.97inch) cold end, the SGV can achieve flows up to 25gpm (95lpm) at 6000 psi(414bar). SGV models are available in complete skid assemblies with auxiliary piping components included to ensure safe, reliable, and efficient LNG pumping. This compact, modular pump is available in single, double or triple cylinder configurations for a wide range of flow options.

● Modular, compact displacement pump (available in 1, 2 or 3 cylinder configurations) provides a wide range of flow rates

● Vacuum-jacketed cold end for minimal cool-down losses and economical operation

● Pressurized, oil-lubricated drive with oil pump and reservoir allows higher bearing loads and prevents internal leakage

● Optimized cold end packing assembly increases seal life

☆A(yù)pplications

High pressure LNG for L/CNG vehicle fueling、ME-GI fuel gas system fueling、Rail fuel gas system fueling

☆Liquids Pumped

Nitrogen、Oxygen、Argon、Ethylene、Methane (LNG)

☆Type

1-SGV

2-SGV

3-SGV
